1. Built with Sturdy ADC12 Die-Casting Aluminum.
2. Real tested parameters, including Power, lumen output, Battery capacity, Solar Module parameters,etc.

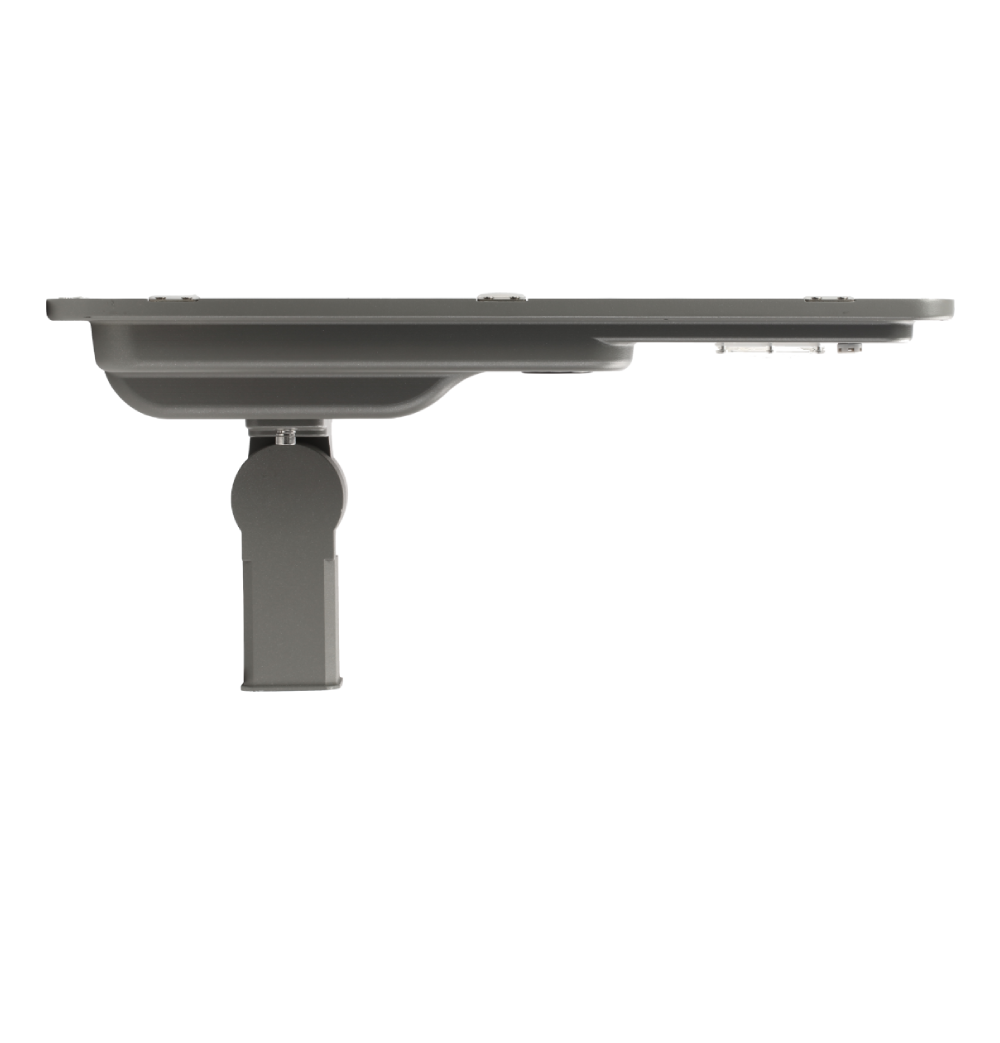

3.Specially designed pole mounting bracket with adjustable tilt angles, which can also be used in post top & lateral mounting positions.
4. Best Raw materials and branded components are used to best gaurantee lifetime and durability.
5.Including First Grade Life-Po4 Battery, First Grade Monocrystalline Solar Module, Bridgelux LEDs, and PWM or MPPT controller.
6. Factory set dimming profile along with microwave sensor for run-time maximization. Dimming can be configured at site with the help of configuration remote controller.
7. Brings light to areas without access to electric grid.
8. Preserves landscape as no trenching for cabling required.
9. Applications: Roadway and streetlighting, Perimeter lighting, Parks, pedestrian paths, etc.
Model | Dimension(mm) | Power | Lumen | PV Power | LifePo4 Batery | Charging time | Back-up Time | Controller | Beam angle |
NR-AIO6030-10W | 560x360mm | 10W | >1800LM | 18V 30W | 12.8V 6.5AH | 6 Hours | 2-3Day Automatic | PWM | Type II, Type III, Type IV |
NR-AIO6030-20W | 560x360mm | 20W | >3600LM | 18V 30W | 12.8V 10.2AH | 6 Hours | 2-3Day Automatic | PWM | Type II, Type III, Type IV |
NR-AIO6030-30W | 790x360mm | 30W | >4800LM | 18V 50W | 12.8V 20.4AH | 6 Hours | 2-3Day Automatic | PWM | Type II, Type III, Type IV |
NR-AIO6030-40W | 790x360mm | 40W | >6400LM | 18V 50W | 12.8V 36AH | 6 Hours | 2-3Day Automatic | PWM | Type II, Type III, Type IV |
NR-AIO6030-60W | 1010x520mm | 60W | >10200LM | 18V 95W | 12.8V 44.2AH | 6 Hours | 2-3Day Automatic | MPPT | Type II, Type III, Type IV |
NR-AIO6030-80W | 1010x520mm | 80W | >13600LM | 18V 95W | 12.8V 51.2AH | 6 Hours | 2-3Day Automatic | MPPT | Type II, Type III, Type IV |
NR-AIO6030-100W | 1400x838mm | 100W | >18000LM | 18V 145W | 25.6V 34AH | 6 Hours | 2-3Day Automatic | MPPT | Type II, Type III, Type IV |
NR-AIO6030-120W | 1400x838mm | 120W | >19600LM | 18V 145W | 25.6V 47.6AH | 6 Hours | 2-3Day Automatic | MPPT | Type II, Type III, Type IV |
