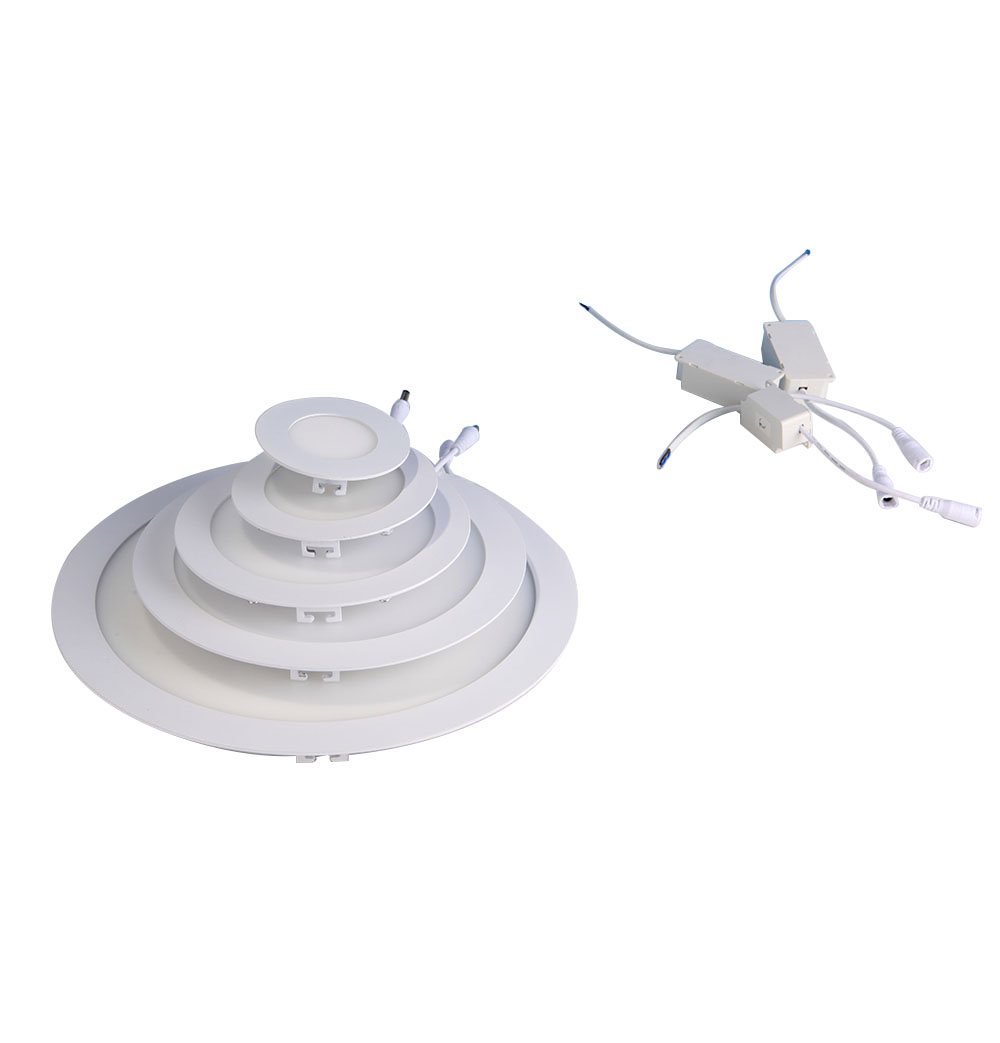

IP20 Aluminum Recessed Panel light
Prev: 2in1 IP54 Square Panel lightNext: IP20 Aluminum Recessed Panel light

IP20 Aluminum Recessed Panel light

Features:
  • Built with Die-casting thick aluminum.
  • In-house quality control. Die-Casting/LGP Cutting/Powder-coating/Driving Testing/Assembly/ Aging Test.
  • Isolated Driver AC85-265V, safe installation.
  • Available function:  Triac dimmable, 0-10V dimmable.
  • New Erp Directive Compliant.
  • 3000K/4000K/6000K 3CCT Dial to Switch

Specifications:

Model Dimension(mm) Cutout(mm) Power Lumen Voltage PF CCT RA Beam angle
NR-DLAR-3W ø85x12 Ø75 3W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLAR-6W ø120x12 Ø105 6W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLAR-9W ø145x12 Ø130 9W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLAR-12W ø170x12 Ø155 12W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLAR-15W ø200x12 Ø180 15W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLAR-18W ø225x12 Ø210 18W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLAR-24W ø300x12 Ø280 24W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
