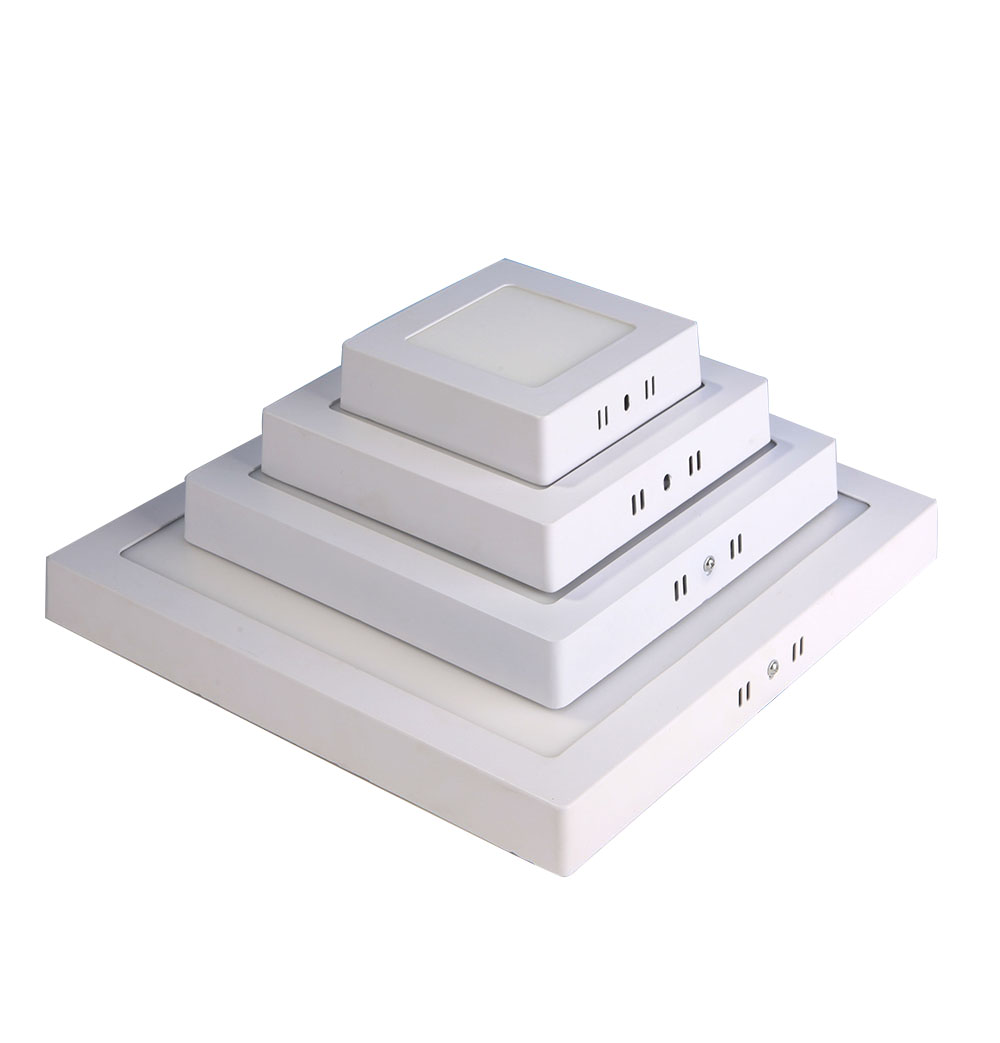

IP20 Aluminum Surface-mounted Panel light

Features:
  • Built with Die-casting thick aluminum.
  • In-house quality control. Die-Casting/LGP Cutting/Powder-coating/Driving Testing/Assembly/ Aging Test.
  • Isolated Driver AC85-265V, safe installation.
  • Available function:  Triac dimmable, 0-10V dimmable.
  • New Erp Directive Compliant.
  • 3000K/4000K/6000K 3CCT Dial to Switch

Specifications:

Model Dimension(mm) Cutout(mm) Power Lumen Voltage PF CCT RA Beam angle
NS-DLBS-6W Ø120*120*32 / 6W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NS-DLBS-12W Ø170*170*32 / 12W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NS-DLBS-18W Ø225*225*32 / 18W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NS-DLBS-24W Ø300*300*32 / 24W 80/100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
