Non-frame Panel Light -Square
Prev: Non-frame Panel Light -RoundNext: Side-emitting LED Panel Light

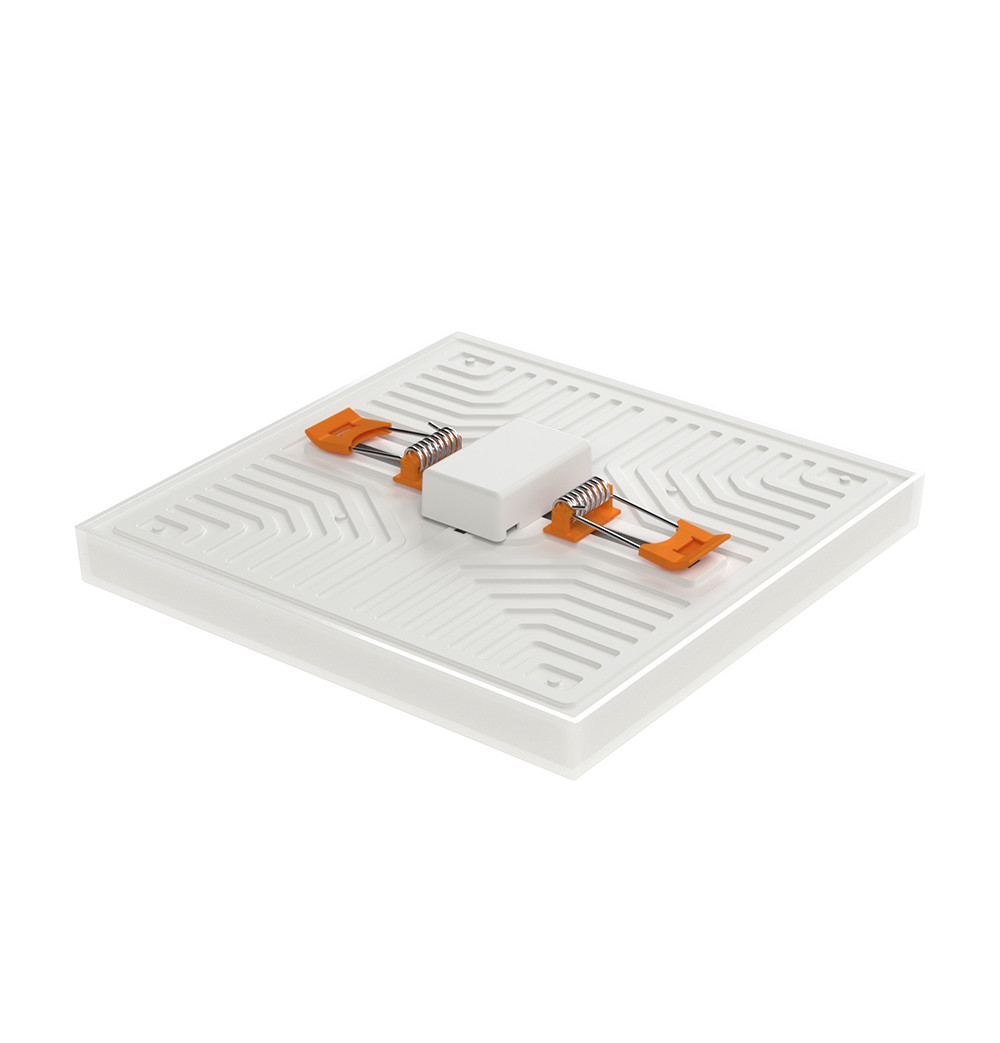

Non-frame Panel Light -Square

Features:
  • LED Non-frame Panel lights present sleek and smooth light effect.
  • Made of Aluminum & PC.
  • Free cutout sizes make installation easy.
  • Isolated Driver AC85-265V, safe installation.
  • Available function:  Triac dimmable, 0-10V dimmable.
  • New Erp Directive Compliant.
  • High lumen output due to backlit LEDs.

Specifications:

Model Dimension(mm) Cutout(mm) Power Lumen Voltage PF CCT RA Beam angle
NR-DLDS-12W 90x90x20mm Free size 12W 100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLDS-18W 120x120x20mm Free size 18W 100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLDS-24W 170x170x20mm Free size 24W 100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
NR-DLDS-36W 225x225x20mm Free size 36W 100LM/W AC100-265V >0.5/>0.9 3000K/4000K/6000K >80 120°
