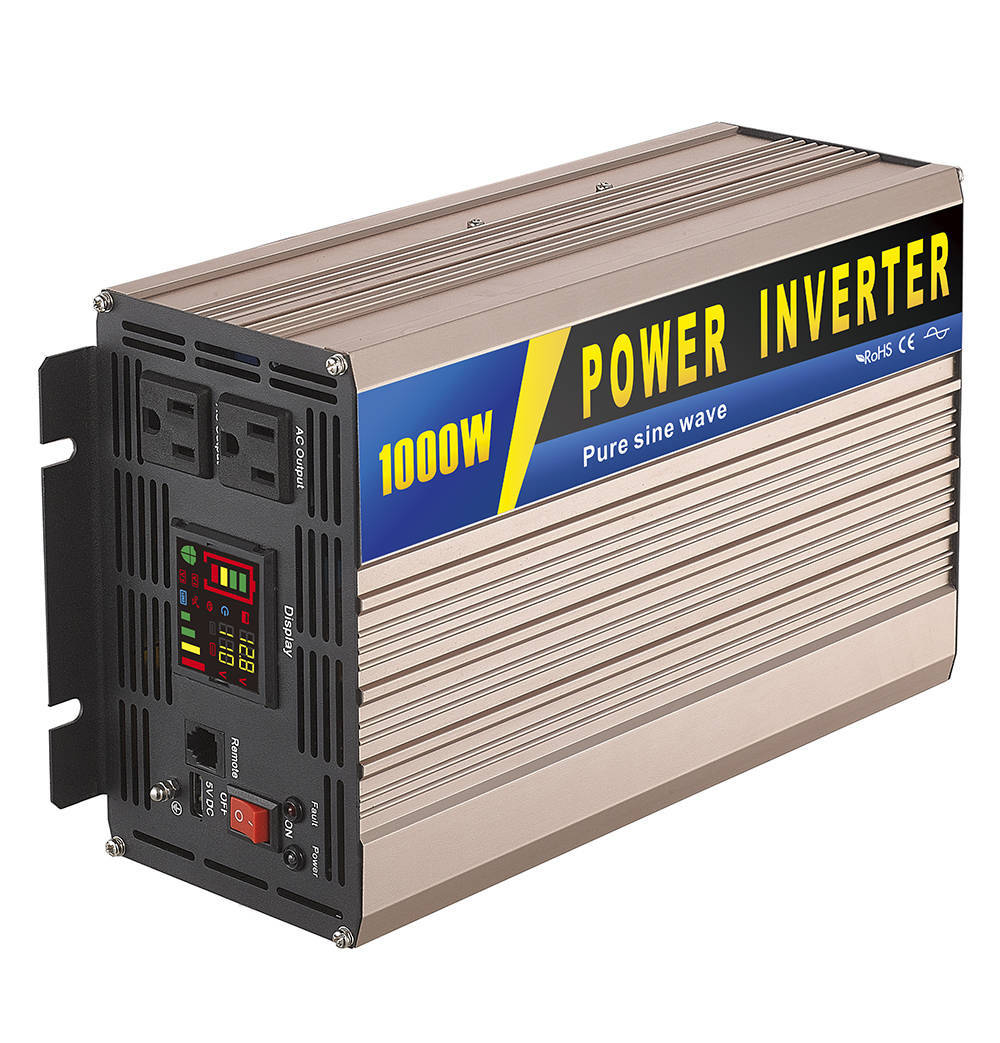

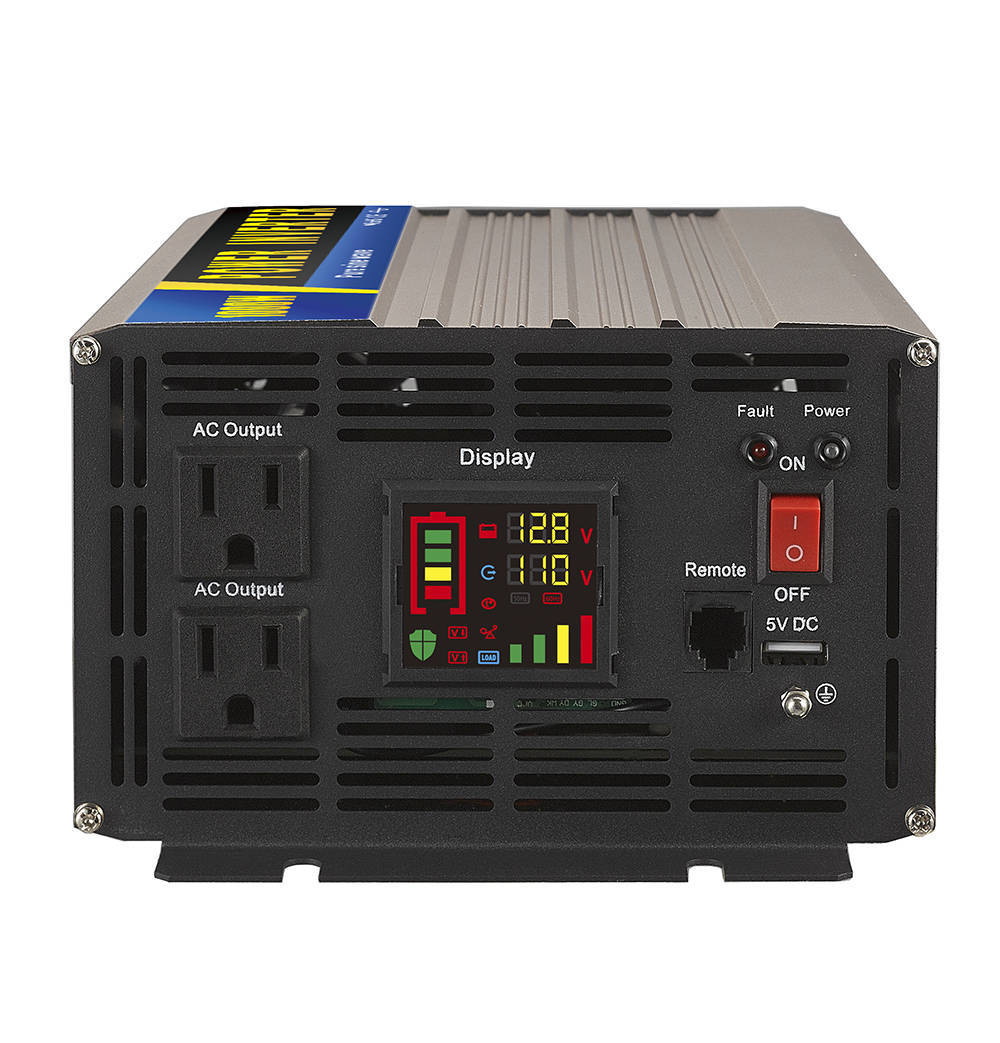

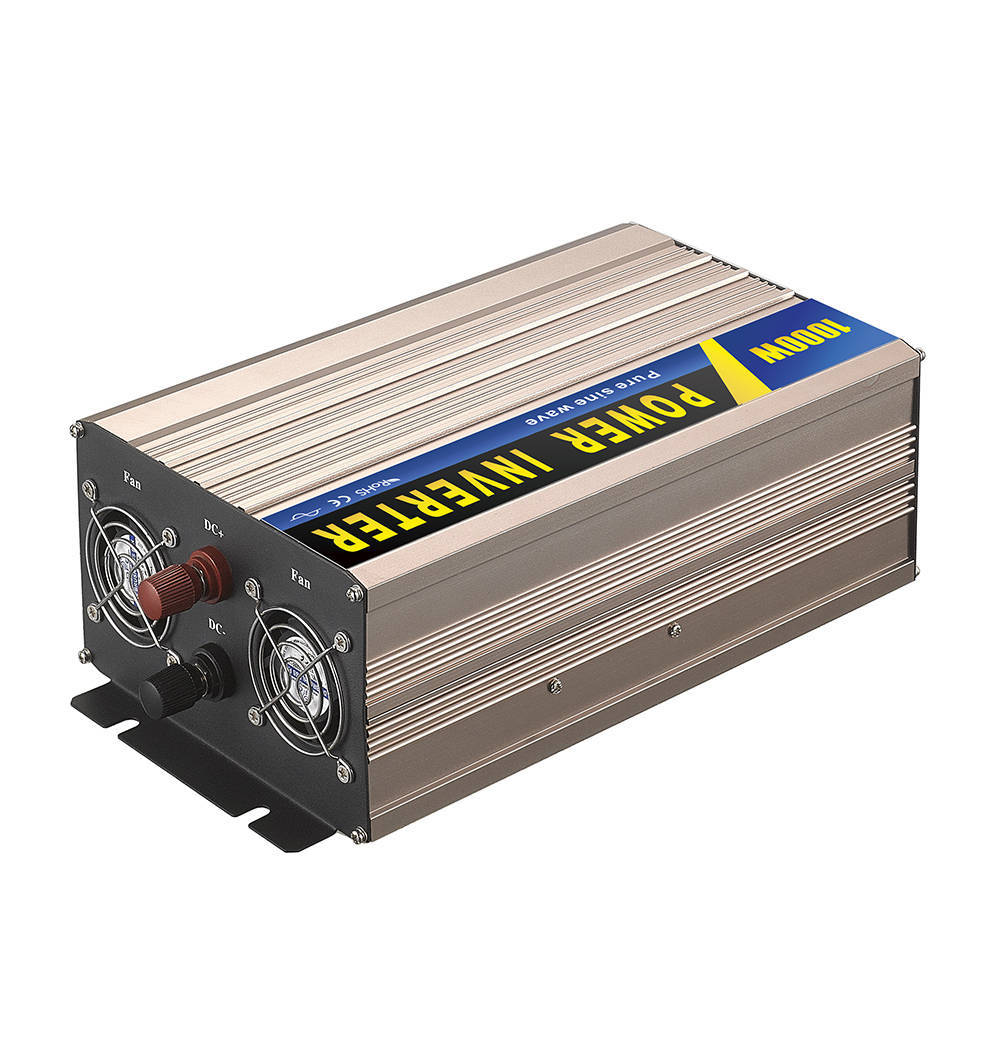

Inverter is a power equipment that can change DC (storage battery, solar cells, wind dynamo, etc.) to AC. The inverter use high-frequency power conversion technology, and use the ferrite transformer instead of the old bulky silicon steel transformer. That is why our power inverter is lighter, smarter than other similar inverters. When the inverter working in inversion mode, the output is in pure sine waveform.
|
Model |
NOE1000-121 |
NOE1000-122 |
NOE1000-241 |
NOE1000-242 |
NOE1000-481 |
NOE1000-482 |
|
Rated Power |
1000W |
|||||
|
Surge Power |
2000W(few seconds) |
|||||
|
Input Voltage |
12VDC |
24VDC |
48VDC |
|||
|
Output Voltage |
110VAC±5% |
220VAC±5% |
110VAC±5% |
220VAC±5% |
110VAC±5% |
220VAC±5% |
|
USB Port |
5V |
|||||
|
Frequency |
50Hz±3 or 60Hz±3 |
|||||
|
Output Waveform |
Pure Sine Wave |
|||||
|
Soft Start |
YES |
|||||
|
AC Regulation |
THD＜3%(Linear Load) |
|||||
|
Output Efficiency |
94% MAX |
|||||
|
No Load Current |
0.6A |
0.3A |
0.1A |
|||
|
DC Voltage Range |
10-15.5V |
20-31V |
40-61V |
|||
|
Low Voltage Alarm |
10.5±0.5V |
21±0.5V |
42±1V |
|||
|
Low Voltage Shut Down |
10±0.5V |
20±0.5V |
40±1V |
|||
|
Low Voltage Recovery |
13±0.5V |
24±0.5V |
48±1V |
|||
|
Over Voltage Shut Down |
15.5±0.5V |
31±0.5V |
61±1V |
|||
|
Over Voltage Recovery |
14.8V±0.5V |
29V±0.5V |
59V±1V |
|||
|
Cooling Way |
Intelligent Cooling Fan |
|||||
|
Protection |
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit |
|||||
|
Working Temperature |
-10℃ - +50℃ |
|||||
|
Net Dimension |
27.8*17*10.5m (L×W×H) |
|||||
|
Meas./Ctn |
53.5*47*40.7cm / 6pcs |
|||||
|
N.W./Unit |
2.74KG |
|||||
|
G.W./Ctn |
20.52KGS |
|||||
|
Packing |
box |
|||||
|
Warranty |
2 Years |
|||||
